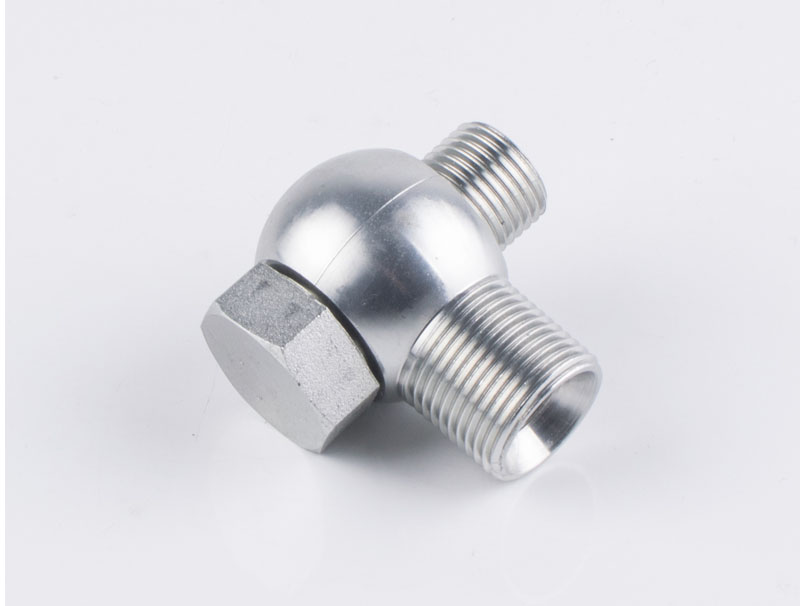

Hydraulic DIN Fittings 1CI/1DI METRIC BANJO
  • Air ProHydraulic DIN Fittings 1CI/1DI METRIC BANJO

Hydraulic DIN Fittings 1CI/1DI METRIC BANJO

DIN stands for "Deutsches Institut für Normung", which means "German institute for Standardization". There are three series of tube port end connections: tube-to-tube, tube-to-female port and tube-to-male thread.

Model:1CI/1DI

Send Inquiry

Product Description

Application


Hydraulic DIN Fittings are most commonly used in industrial, oil & gas and construction equipment in hydraulic and pneumatic .We, as a
manufacturer,own a very good reputation in hydraulic DIN fitting area.


Metric O.D. sizes range from 4mm to 42mm, and the most common industrial applications use carbon steel or stainless steel material.

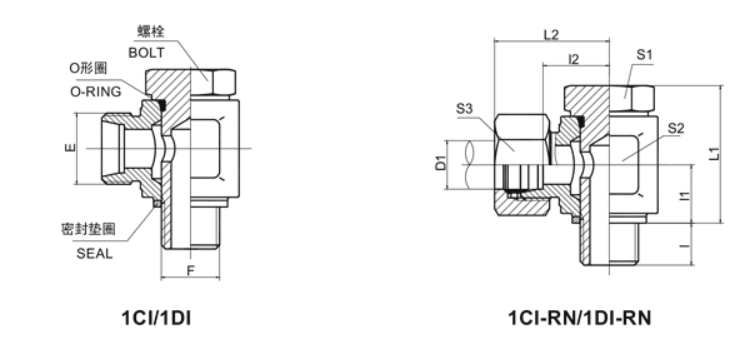

Drawing







Technical Data


 PART NO. THREAD D1 TUBE O.D. DIMENSIONS  BOLT  O-RING SEAL  MPa
E F l l1 L1 l2 L2 S1 S2 S3
1CI-12-10 M12X1.5 M10X1 6 8 11 25.5 12 27 14 17 14 700M-10I O08.1X1.6 ZHD-10 31.5
Light series L
1CI-14-12 M14X1.5 M12X1.5 8 12 14.5 33 14.5 29 17 22 17 700M-12I O09.3X2.4 ZHD-12
1CI-16-14 M16X1.5 M14X1.5 10 12 14.5 33 16.5 31 19 24 19 700M-14I O11.3X2.4 ZHD-14
1CI-18-16 M18X1.5 M16X1.5 12 12 17 39 19 34 22 27 22 700M-16I O13.3X2.4 ZHD-16
1CI-22-18 M22X1.5 M18X1.5 15 12 18.5 42 21.5 37 24 30 27 700M-18I O15.3X2.4 ZHD-18
1CI-26-22 M26X1.5 M22X1.5 18 14 21.5 49 22 38 27 32 32 700M-22I O19.3X2.4 ZHD-22
1CI-30-26 M30X2 M26X1.5 22 16 24 56 28.5 45 36 41 36 700M-26I O23.5X3.0 ZHD-27 16
Light series L
1CI-36-33 M36X2 M33X2 28 18 30.5 71 33 50 41 50 41 700M-33I O29.5X3.0 ZHD-33
1CI-45-42 M45X2 M42X2 35 20 35.5 82 37 59 50 60 50 700M-42I O38.5X3.0 ZHD-42
1CI-52-48 M52X2 M48X2 42 22 40.5 93 41.5 64 55 70 60 700M-48I O44.5X3.0 ZHD-48
1DI-14-12 M14X1.5 M12X1.5 6 12 14.5 33 16.5 31 17 22 17 700M-12I O09.3X2.4 ZHD-12 63
Weight series S
1DI-16-14 M16X1.5 M14X1.5 8 12 14.5 33 17.5 32 19 24 19 700M-14I O11.3X2.4 ZHD-14
1DI-18-16 M18X1.5 M16X1.5 10 12 17 39 19.5 36 22 27 22 700M-16I O13.3X2.4 ZHD-16
1DI-20-18 M20X1.5 M18X1.5 12 12 18.5 42 21 37 24 30 24 700M-18I O15.3X2.4 ZHD-18
1DI-22-20 M22X1.5 M20X1.5 14 14 20 46 23.5 41 27 32 27 700M-20I O17.3X2.4 ZHD-20
1DI-24-22 M24X1.5 M22X1.5 16 14 21.5 49 23 41 27 32 30 700M-22I O19.3X2.4 ZHD-22
1DI-30-27 M30X2 M27X2 20 16 24 56 27.5 49 36 41 36 700M-27I O23.5X3.0 ZHD-27 40
Weight series S
1DI-36-33 M36X2 M33X2 25 18 30.5 71 32.5 57 41 50 46 700M-33I O29.5X3.0 ZHD-33
1DI-42 M42X2 M42X2 30 20 35.5 82 38 65 50 60 50 700M-42I O38.5X3.0 ZHD-42
1DI-52-48 M52X2 M48X2 38 22 40.5 93 42.5 73 55 70 60 700M-48I O44.5X3.0 ZHD-48
Note: In case if you are interested to order the adapter in complete set with cutting ring and nut,it is necessary to insert suffix "RN" after our part no.,for example 1D1-36-33RN.



Product Details



High quality Hydraulic DIN Fittings can satisfy your different needs with its special quality and features.
1.   Finished:high quality Zinc plated , Zn-Ni plated , Cr3 , Cr6 plated.
2.   Price:very competitive
3.   MOQ: 300PCS
4.   Material: iron, carbon steel, stainless steel, other metals
5.   Standard / specification: Standard or as per drawing and samples (OEM)
6.   Size: as per customers' requests

Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.



Delivery,Shipping And Serving


1.     Delivery: As general,we can guarantee the delivery within one month.
2.     Port of loading: Ningbo or Shanghai
