Hydraulic DIN Fittings 1CH9-OG /1DH9-OG 90° ELBOW METRIC THREAD ADJUSTABLE STUD ENDS ISO 6149
  • Air ProHydraulic DIN Fittings 1CH9-OG /1DH9-OG 90° ELBOW METRIC THREAD ADJUSTABLE STUD ENDS ISO 6149

Hydraulic DIN Fittings 1CH9-OG /1DH9-OG 90° ELBOW METRIC THREAD ADJUSTABLE STUD ENDS ISO 6149

DIN stands for "Deutsches Institut für Normung", which means "German institute for Standardization". There are three series of tube port end connections: tube-to-tube, tube-to-female port and tube-to-male thread.

Model:1CH9-OG /1DH9-OG

Send Inquiry

Product Description

Application


Hydraulic DIN Fittings are most commonly used in industrial, oil & gas and construction equipment in hydraulic and pneumatic .We, as a

manufacturer,own a very good reputation in hydraulic DIN fitting area.

Metric O.D. sizes range from 4mm to 42mm, and the most common industrial applications use carbon steel or stainless steel material.

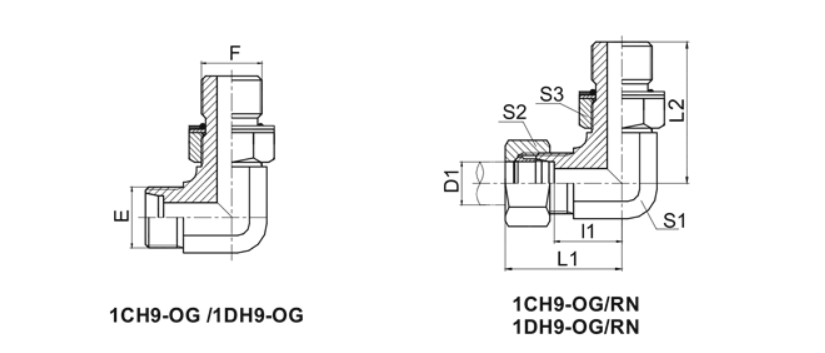

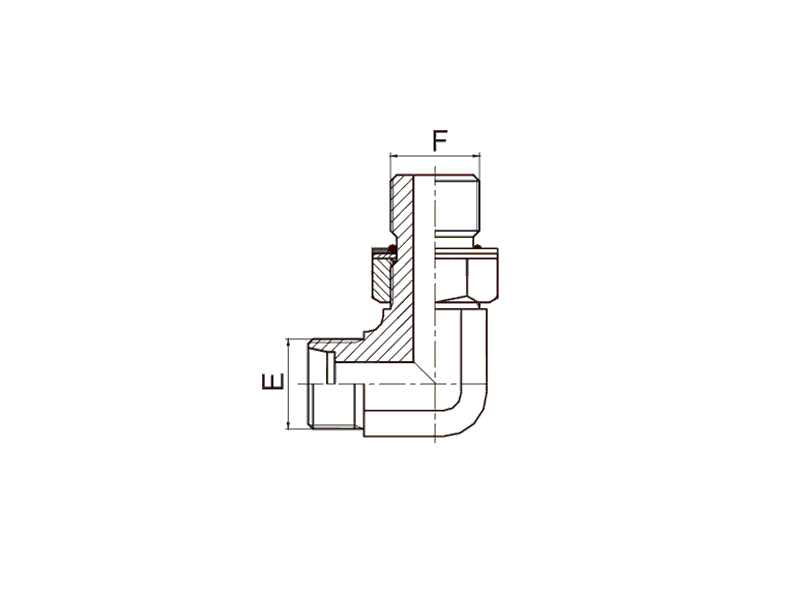

Drawing






Technical Data





 PART NO.   THREAD TUBE O.D.  O RING  DIMENSIONS  MPa
E F l1 L1 L2 S1 S2 S3
1CH9-12-10OG M12X1.5 M10X1 6 O08.1X1.6 13 28 26.5 11 14 14 31.5
Light series L
1CH9-14-12OG M14X1.5 M12X1.5 8 O09.3X2.4 15.5 30.5 32 14 17 17
1CH9-16-14OG M16X1.5 M14X1.5 10 O11.3X2.4 17.5 32.5 34 16 19 19
1CH9-18-16OG M18X1.5 M16X1.5 12 O13.3X2.4 19 34 36 19 22 22
1CH9-22-18OG M22X1.5 M18X1.5 15 O15.3X2.4 22 37 39.5 22 27 24
1CH9-26-22OG M26X1.5 M22X1.5 18 O19.3X2.4 25.5 42 43.5 27 32 27
1CH9-30-27OG M30X2 M27X2 22 O23.5X3.0 29.3 45.8 50 30 36 32 16
Light seriesL
1CH9-36-33OG M36X2 M33X2 28 O29.5X3.0 33.3 49.8 54 36 41 41
1DH9-14-12OG M14X1.5 M12X1.5 6 O09.3X2.4 17.5 32.5 32 14 17 17 63
Weight series S
1DH9-16-14OG M16X1.5 M14X1.5 8 O11.3X2.4 18.7 33.7 34 16 19 19
1DH9-18-16OG M18X1.5 M16X1.5 10 O13.3X2.4 19.5 36 36 19 22 22
1DH9-20-18OG M20X1.5 M18X1.5 12 O15.3X2.4 19.5 36 37 19 24 24
1DH9-22-20OG M22X1.5 M20X1.5 14 O17.3X2.4 23 41 40 22 27 27
1DH9-24-22OG M24X1.5 M22X1.5 16 O19.3X2.4 24 42 37.5 24 30 27
1DH9-30-27OG M30X2 M27X2 20 O23.5X3.0 28.3 49.8 50 30 36 32 40
Weight series S
1DH9-36-33OG M36X2 M33X2 25 O29.5X3.0 32.8 56.8 54 36 46 41
1DH9-42OG M42X2 M42X2 30 O38.5X3.0 36.2 62.7 57.2 41 50 50
Note:In case if you are interested to order the adapter in complete set with cutting ring and nut,it is necessary to insert suffix "RN" after our part no.,for example 1DH9-20-180-G/RN



Product Details


High quality Hydraulic DIN Fittings can satisfy your different needs with its special quality and features.
1.   Finished:high quality Zinc plated , Zn-Ni plated , Cr3 , Cr6 plated.
2.   Price:very competitive
3.   MOQ: 300PCS
4.   Material: iron, carbon steel, stainless steel, other metals
5.   Standard / specification: Standard or as per drawing and samples (OEM)
6.   Size: as per customers' requests

Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.



Delivery,Shipping And Serving


1.     Delivery: As general,we can guarantee the delivery within one month.
2.     Port of loading: Ningbo or Shanghai
