DIN stands for "Deutsches Institut für Normung", which means "German institute for Standardization". There are three series of tube port end connections: tube-to-tube, tube-to-female port and tube-to-male thread.

Model:1C-Y/1D-Y

Send Inquiry

Product Description

Application

Hydraulic DIN Fittings are most commonly used in industrial, oil & gas and construction equipment in hydraulic and pneumatic .We, as a

manufacturer,own a very good reputation in hydraulic DIN fitting area.

Metric O.D. sizes range from 4mm to 42mm, and the most common industrial applications use carbon steel or stainless steel material.

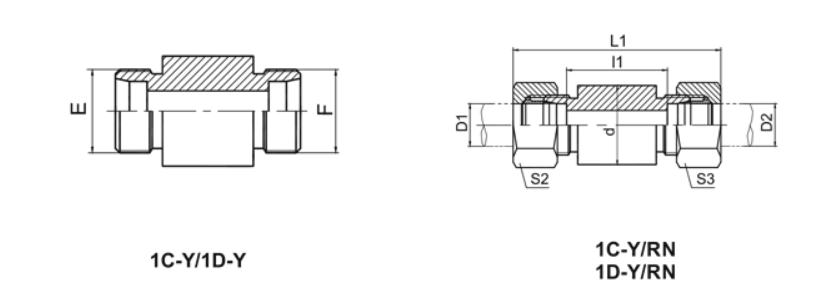

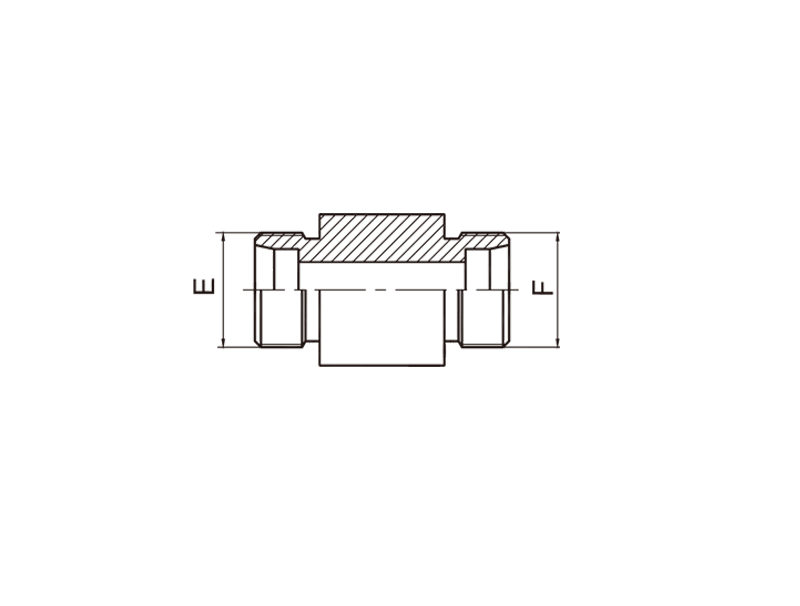

Drawing


Technical Data

PART NO. THREAD  TUBE O.D.   DIMENSIONS  MPa
E F D1 D2 l1 L1 d S2,S3
1C-12Y M12X1.5 M12X1.5 6 6 56 85 18 14 31.5
Light series L
1C-14Y M14X1.5 M14X1.5 8 8 56 85 20 17
1C-16Y M16X1.5 M16X1.5 10 10 58 87 22 19
1C-18Y M18X1.5 M18X1.5 12 12 58 87 25 22
1C-22Y M22X1.5 M22X1.5 15 15 70 100 28 27
1C-26Y M26X1.5 M26X1.5 18 18 69 101 32 32
1C-30Y M30X2 M30X2 22 22 73 105 36 36 16
Light series L
1C-36Y M36X2 M36X2 28 28 73 106 40 41
1C-45Y M45X2 M45X2 35 35 71 114 50 50
1C-52Y M52X2 M52X2 42 42 70 115 60 60
1D-14Y M14X1.5 M14X1.5 6 6 60 89 20 17 63
Weight series S
1D-16Y M16X1.5 M16X1.5 8 8 60 89 22 19
1D-18Y M18X1.5 M18X1.5 10 10 59 91 25 22
1D-20Y M20X1.5 M20X1.5 12 12 59 91 28 24
1D-22Y M22X1.5 M22X1.5 14 14 72 107 30 27
1D-24Y M24X1.5 M24X1.5 16 16 71 107 35 30 40
Weight series S
1D-30Y M30X2 M30X2 20 20 71 114 38 36
1D-36Y M36X2 M36X2 25 25 72 120 45 46
1D-42Y M42X2 M42X2 30 30 73 126 50 50
1D-52Y M52X2 M52X2 38 38 72 133 60 60

31.5

Weight series S

Note: In case if you are interested to order the adapter in complete set with cutting ring and nut,it is necessary to insert suffix RN after our part no.,for example 1CY-30RN.

Product Details

High quality Hydraulic DIN Fittings can satisfy your different needs with its special quality and features.
1.   Finished:high quality Zinc plated , Zn-Ni plated , Cr3 , Cr6 plated.
2.   Price:very competitive
3.   MOQ: 300PCS
4.   Material: iron, carbon steel, stainless steel, other metals
5.   Standard / specification: Standard or as per drawing and samples (OEM)
6.   Size: as per customers' requests

Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.

Delivery,Shipping And Serving

1.     Delivery: As general,we can guarantee the delivery within one month.
2.     Port of loading: Ningbo or Shanghai
