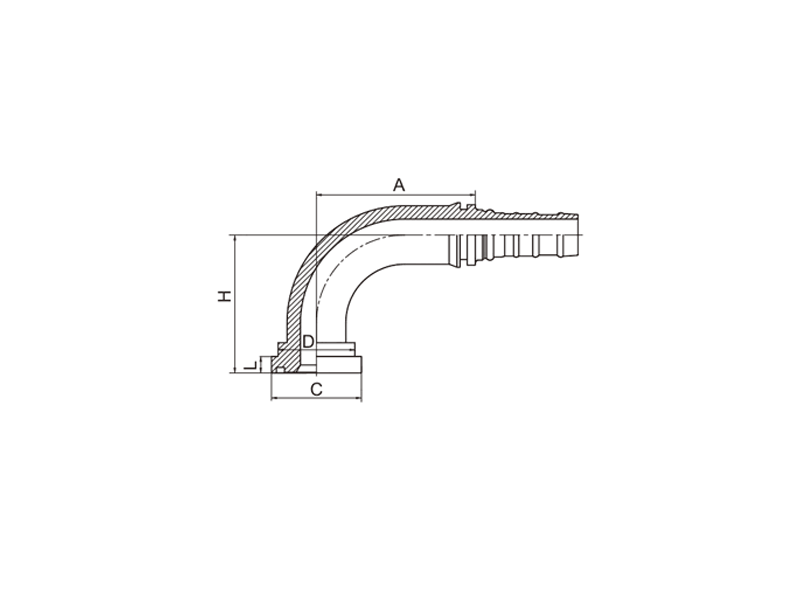

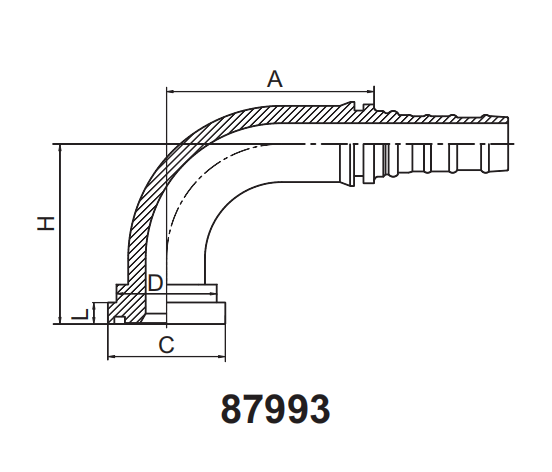

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 87993 90°SAE FLANGE 9000 PSI
| PART NO. | FLANGE SIZE | HOSE BORE | DIMENSIONS | |||||
| DN | DASH | A | C | D | H | L | ||
| 87993-12-12 | 3/4" | 20 | 12 | 75 | 41.3 | 31.7 | 71.5 | 14.3 |
| 87993-16-12 | 1" | 20 | 12 | 75 | 47.6 | 38 | 73 | 14.3 |
| 87993-16-16 | 1" | 25 | 16 | 88.9 | 47.6 | 38 | 78.5 | 14.3 |
| 87993-20-16 | 1.1/4" | 25 | 16 | 88.9 | 54 | 43 | 79.5 | 14.3 |
| 87993-20-20 | 1.1/4" | 32 | 20 | 105.8 | 54 | 43 | 90.5 | 14.3 |
| 87993-24-20 | 1.1/2" | 32 | 20 | 105.8 | 63.5 | 50.8 | 91.5 | 14.3 |
| 87993-24-24 | 1.1/2" | 40 | 24 | 124.2 | 63.5 | 50.8 | 105 | 14.3 |
