HYDRAULIC 26791-RW 90° JIC FEMALE 74° CONE SEAT SAE J514
  • Air ProHYDRAULIC 26791-RW 90° JIC FEMALE 74° CONE SEAT SAE J514

HYDRAULIC 26791-RW 90° JIC FEMALE 74° CONE SEAT SAE J514

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 26791-RW 90° JIC FEMALE 74° CONE SEAT SAE J514

Model:26791-RW

Send Inquiry

Product Description

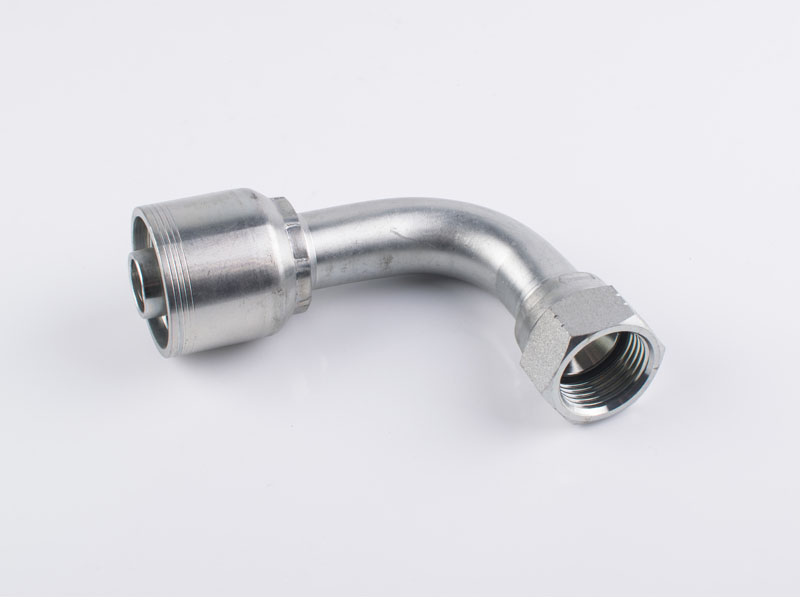

HYDRAULIC 26791-RW 90° JIC FEMALE 74° CONE SEAT SAE J514

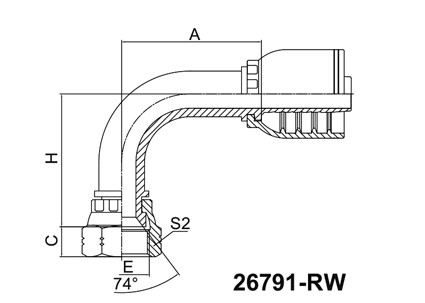

PART NO.  THREAD E  HOSE BORE  DIMENSIONS
DN DASH A C H S2
26791-04-03 RW 7/16"X20 5 03 26.5 9 30.5 15
26791-04-04 RW 7/16"X20 6 04 30 9 33.5 15
26791-05-04 RW 1/2"X20 6 04 30 9.5 34 17
26791-05-05RW 1/2"X20 8 05 33 9.5 37 17
26791-05-06 RW 1/2"X20 10 06 35.3 9.5 39.3 17
26791-06-04 RW 9/16"X18 6 04 30 10.5 34 19
26791-06-05RW 9/16"X18 8 05 33 10.5 37 19
26791-06-06RW 9/16"X18 10 06 35.3 10.5 39.3 19
26791-06-08RW 9/16"X18 12 08 41 10.5 45.5 19
26791-08-06RW 3/4"X16 10 06 35.3 11 41.3 24
26791-08-08RW 3/4"X16 12 08 41 11 47 24
26791-08-10RW 3/4"X16 16 10 56.5 11 51.5 24
26791-10-08RW 7/8"X14 12 08 41 13 48 27
26791-10-10RW 7/8"X14 16 10 56.5 13 52.5 27
26791-10-12RW 7/8"X14 20 12 67 13 64 27
26791-12-08RW 1.1/16"X12 12 08 41 15 49.5 32
26791-12-10RW 1.1/16"X12 16 10 56.5 15 54 32
26791-12-12RW 1.1/16"X12 20 12 65.5 15 63.5 32
26791-12-16RW 1.1/16"X12 25 16 76.7 15 70 32
26791-14-12RW 1.3/16"X12 20 12 65.5 15 63.5 36
26791-16-12RW 1.5/16"X12 20 12 65.5 16 63.5 41
26791-16-16RW 1.5/16"X12 25 16 76.7 16 70 41
26791-16-20 RW 1.5/16"X12 32 20 91.5 16 81 41
26791-20-20WRW 1.5/8"X12 32 20 91.5 17 80.5 50
26791-24-20WRW 1.7/8"X12 32 20 91.5 20 79.5 55
26791-24-24WRW 1.7/8"X12 40 24 109.4 20 94 55
26791-32-32WRW 2.1/2"X12 50 32 133.1 23.5 121.8 75

NOTE:

1.For use with braided hoses.

2.If with spiral hoses,hose fitting series number is 26792-XX-XXRW.
