HYDRAULIC 22613-W BSP FEMALE 60°CONE
  • Air ProHYDRAULIC 22613-W BSP FEMALE 60°CONE

HYDRAULIC 22613-W BSP FEMALE 60°CONE

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials：stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 22613-W BSP FEMALE 60°CONE

Model:22613-W

Send Inquiry

Product Description

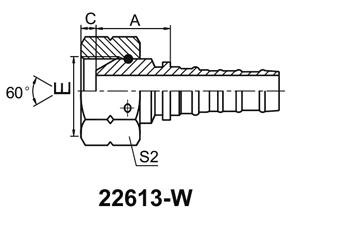

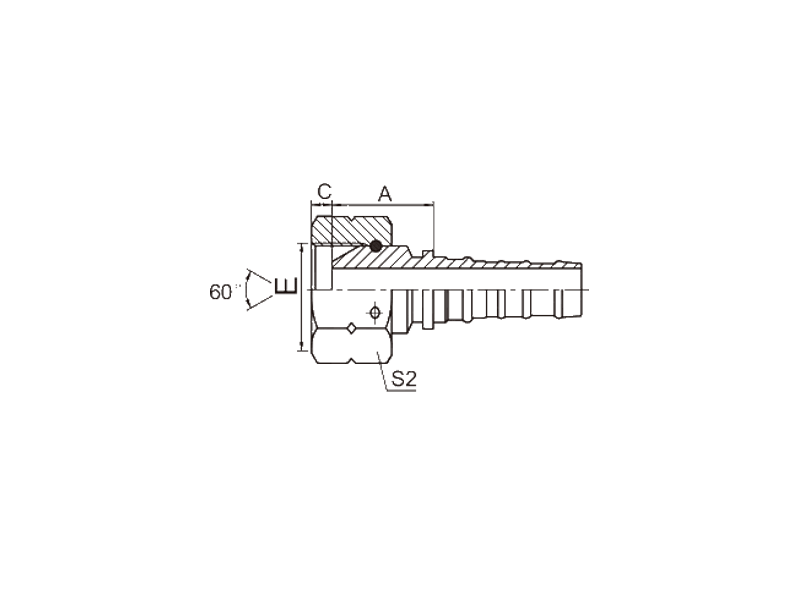

HYDRAULIC 22613-W BSP FEMALE 60°CONE



  PART NO.   THREADE  HOSE BORE  DIMENSIONS
 DN  DASH A C S2
22613-12-12W G3/4"X14 20 12 26.5 10.9 32
22613-16-16W G1"X11 25 16 30.4 11.7 41
22613-20-20W G1.1/4-X11 32 20 35.8 11.0 50
22613-24-24W G1.1/2"X11 40 24 36.7 14 55
22613-32-32W G2"X11 50 32 36.5 16 70
