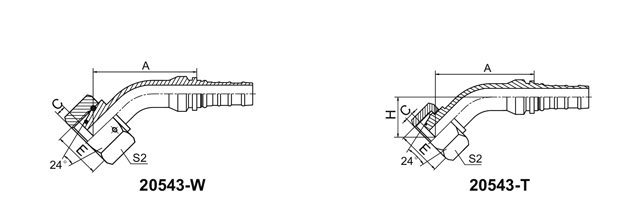

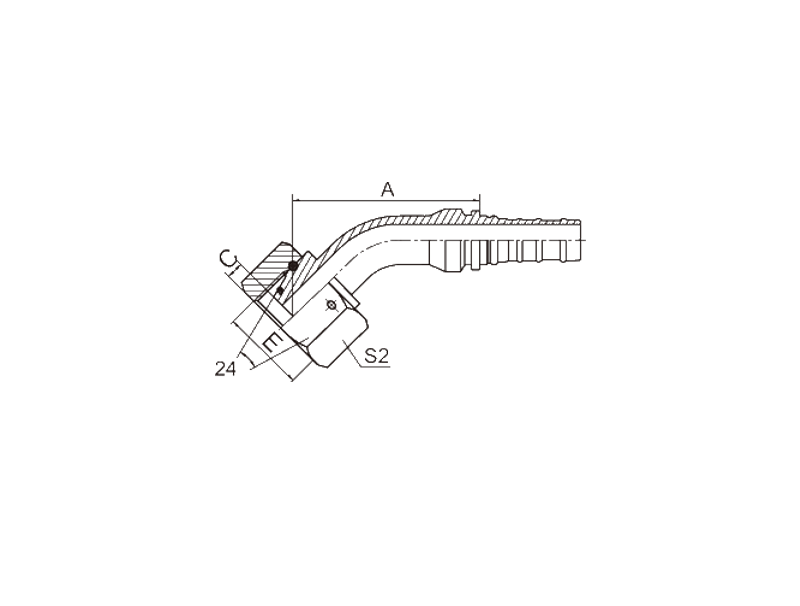

HYDRAULIC 20543-W 45°METRIC FEMALE 24°CONE O-RING H.T.
  • Air ProHYDRAULIC 20543-W 45°METRIC FEMALE 24°CONE O-RING H.T.

HYDRAULIC 20543-W 45°METRIC FEMALE 24°CONE O-RING H.T.

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 20543-W 45°METRIC FEMALE 24°CONE O-RING H.T.

Model:20543-W

Send Inquiry

Product Description

HYDRAULIC 20543-W 45°METRIC FEMALE 24°CONE O-RING H.T.



PART NO. THREAD E HOSE BORE TUBEO.D. ORING  DIMENSIONS
DN DASH A C H S2
20543-36-12T M36X2 20 12 25 O20.3X2.4 89.4 3 33 41
20543-42-16W M42X2 25 16 30 O25.3X2.4 102.3 5 35.9 50
20543-52-20T M52X2 32 20 38 O33.3X24 114.5 6.5 39.4 60

Hot Tags: HYDRAULIC 20543-W 45°METRIC FEMALE 24°CONE O-RING H.T., China, Manufacturer, Supplier, Factory, High quality, Wholesale, Customized, Price
