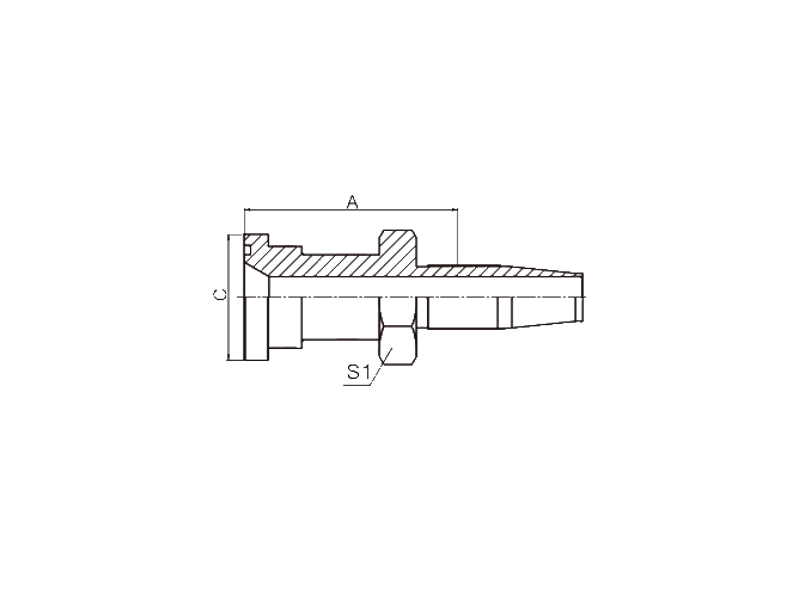

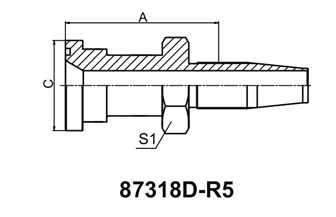

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials:stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 87318D-R5 SAE FLANGE 3000 PSI
PART NO. | FLANGE SIZE | HOSE BORE | DIMENSIONS | |||
DN | DASH | S1 | A | C | ||
87318D-08-08(R5) | 1/2" | 11 | 08 | 22 | 54 | 30.2 |
87318D-12-12(R5) | 3/4" | 16 | 12 | 27 | 55 | 38.1 |
87318D-16-16(R5) | 1" | 22 | 16 | 32 | 55 | 44.4 |
87318D-20-20(R5) | 1.1/4" | 28 | 20 | 41 | 58 | 50.8 |
87318D-24-24(R5) | 1.1/2" | 35 | 24 | 46 | 70 | 60.3 |
87318D-32-32(R5) | 2" | 46 | 32 | 60 | 72 | 71.4 |
