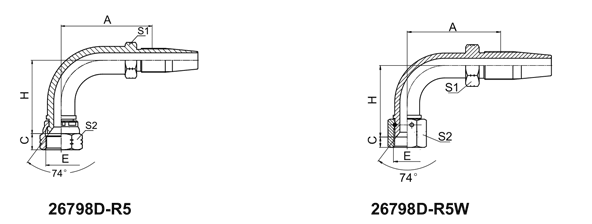

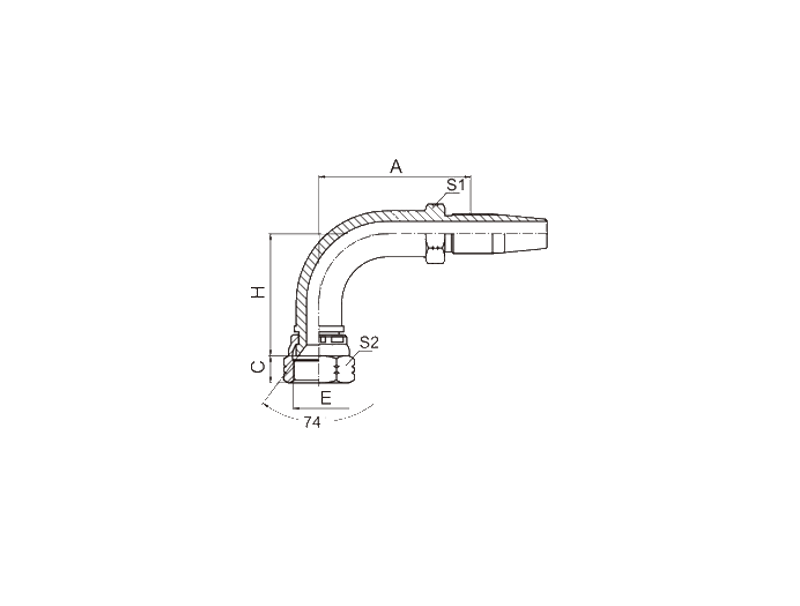

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 26798D-R5 90° JIC FEMALE 74°CONE SEAT
| PART NO. | THREAD E | HOSE DASH | DIMENSIONS | ||||
| A | C | H | S1 | S2 | |||
| 26798D-04-04(R5) | 7/16"X20 | 04 | 38.5 | 9 | 33.5 | 14 | 15 |
| 26798D-05-05(R5) | 1/2"X20 | 05 | 43.4 | 9.5 | 37 | 14 | 17 |
| 26798D-06-06(R5) | 9/16"X18 | 06 | 44.8 | 10.5 | 39.3 | 17 | 19 |
| 26798D-08-08(R5) | 3/4"X16 | 08 | 53 | 11 | 47.5 | 19 | 24 |
| 26798D-10-10(R5) | 7/8..X14 | 10 | 66.5 | 13 | 52.5 | 24 | 27 |
| 26798D-12-12(R5) | 1.1/16"X12 | 12 | 79.5 | 15 | 63.5 | 27 | 32 |
| 26798D-16-16(R5) | 1.5/16"X12 | 16 | 86.5 | 16 | 70 | 32 | 41 |
| 26798D-20-20(R5)W | 1.5/8"X12 | 20 | 100.5 | 17 | 85 | 38 | 50 |
| 26798D-24-24(R5)W | 1.7/8"X12 | 24 | 121 | 20 | 97.5 | 46 | 55 |
| 26798D-32-32(R5)W | 2.1/2-X12 | 32 | 143.3 | 23.5 | 118.8 | 60 | 75 |
