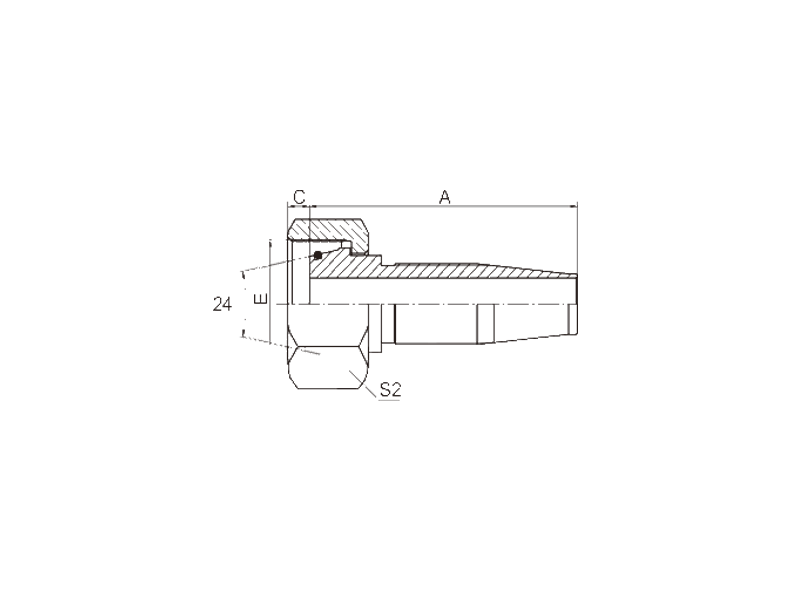

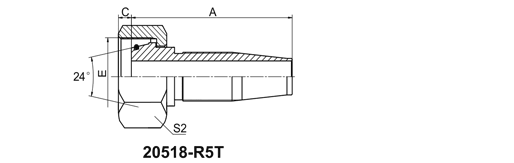

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 20518-R5T METRIC FEMALE 24° CONE SEAT WEIGHT
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||
| DN | DASH | C | S2 | ||
| 20518-16-04(R5T) | M14X1.5 | 5 | 04 | 1.8 | 19 |
| 20518-16-05(R5T) | M16X1.5 | 6 | 05 | 1.8 | 19 |
| 20518-18-04(R5T) | M18X1.5 | 5 | 04 | 1.5 | 22 |
| 20518-18-06(R5T) | M18X1.5 | 8 | 06 | 1.5 | 22 |
| 20518-20-06(R5T) | M20X1.5 | 8 | 06 | 2.5 | 24 |
| 20518-22-06(R5T) | M22X1.5 | 8 | 06 | 3 | 27 |
| 20518-24-08(R5T) | M24X1.5 | 11 | 08 | 3 | 30 |
| 20518-30-10(R5T) | M30X2 | 13 | 10 | 2.5 | 36 |
| 20518-30-12(R5T) | M30X2 | 16 | 12 | 2.5 | 36 |
| 20518-36-12(R5T) | M36X2 | 16 | 12 | 3.2 | 46 |
| 20518-36-16(R5T) | M36X2 | 22 | 16 | 3.2 | 46 |
| 20518-42-16(R5T) | M42X2 | 22 | 16 | 3.9 | 50 |
| 20518-42-20(R5T) | M42X2 | 28 | 20 | 3.9 | 50 |
| 20518-52-20(R5T) | M52X2 | 28 | 20 | 4.5 | 60 |
| 20518-52-24(R5T) | M52X2 | 35 | 24 | 4.5 | 60 |
