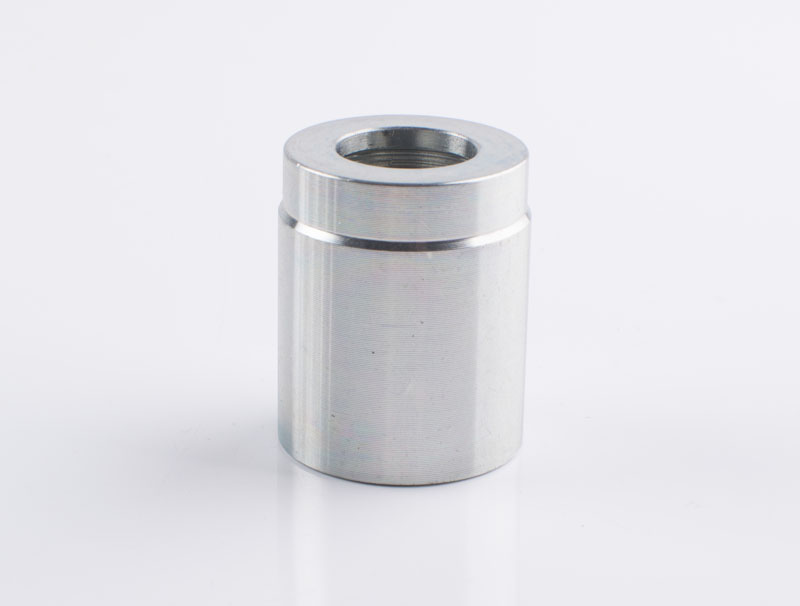

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials:stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 03310 FERRULE FOR SAE 100 R2AT/EN 853 2SN HOSE

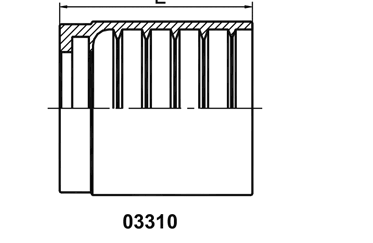

PART NO. | HOSE BORE | DIMENSIONS | |
DN | DASH | L | |
03310-03 | 5 | 03 | 23 |
03310-04 | 6 | 04 | 30.5 |
03310-05 | 8 | 05 | 30 |
03310-06 | 10 | 06 | 32 |
03310-08 | 12 | 08 | 34 |
03310-10 | 16 | 10 | 37 |
03310-12 | 20 | 12 | 42 |
03310-16 | 25 | 16 | 51 |
